W Series AC EV charger 7kW/11kW/22kW

W Series AC EV charger 7kW/11kW/22kW

Nombre De La Marca: DOOR
Número De Modelo: Serie de W
Cuota De Producción: 1 pieza
Precio: Negociable
Condiciones De Pago: LC, T/T, Unión Occidental
Información detallada
Lugar de origen:
Porcelana
Certificación:
CE/CB
Fuente de alimentación:
1P+N+PE
Tensión nominal:
CA 230 V
Corriente nominal:
32a
Frecuencia:
50/60HZ
voltaje de salida:
CA 230 V
Corriente máxima:
32a
Potencia nominal:
7kW
Conector de la carga:
Conector GBT/Tipo 2
Recinto:
ABS+PC
Panel frontal:
ABS
Indicador LED Lector RFID:
Verde/Azul/Rojo Mifare ISO/IEC 14443 A
Modo de inicio:
Enchufe y carga/tarjeta RFID/APP
Parada de emergencia:
Wi-Fi:
Opcional
Ethernet/3G/4G:
Opcional
ocpp:
OCPP 1.6 (OCPP 2.0 opcional)
Metro de la energía:
No
RCD:
30 mA tipo A + 6 mA CC
Protección de ingreso:
IP65
Protección contra impactos:
IK08
Certificación:
CE | CB((In Progress))
Estándar de la certificación:
EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018
Garantía:
1 año
Instalación:
Montado en la pared o en el poste
temperatura de trabajo:
-30 °C ~ +50 °C
Humedad de trabajo:
5%~95%
Altitud del trabajo:
<2000m
Dimensión del paquete:
440*400*170 mm (largo x ancho x alto)
Peso bruto:
5,1 kilos
Paquete externo:
Caja de cartón
Descripción del producto

W Series Ac chargers


The W Series Ac chargers are specifically designed for commercial applications, offeringreliable performance, smart connectivity, and flexible installation options.

————————————————————————————————————————————————————————————————————————————————————

1.Lower Deployment cost


85%lower CAPEX compared to DC fast charging, with simpler installation requirements and reduced electrical infrastructure costs.


2.Ideal For Long Parking


Perfect for 4-10 hour parking scenarios like employee parking, residential parking, and business park applications.


3.Scalable Deployment


Easily scale from 2 to 100+ charging points with modular design and phased deployment capabilities.


4.Smart Management


Advanced features including APP control, RFlD access,OCPP platform integration, and dynamic load balancing.

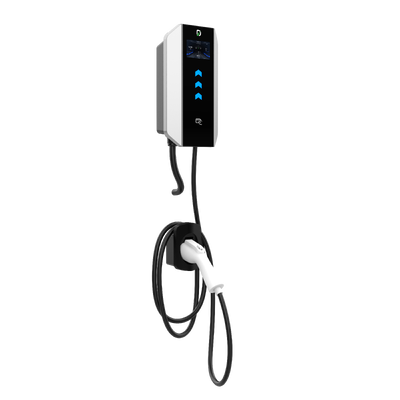

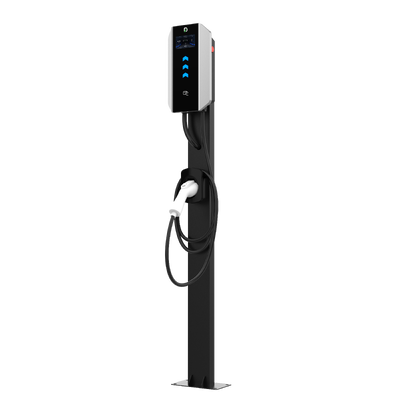

W Series AC EV charger 7kW/11kW/22kW 0

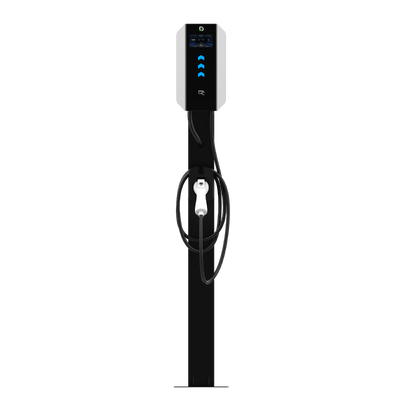

W Series AC EV charger 7kW/11kW/22kW 1

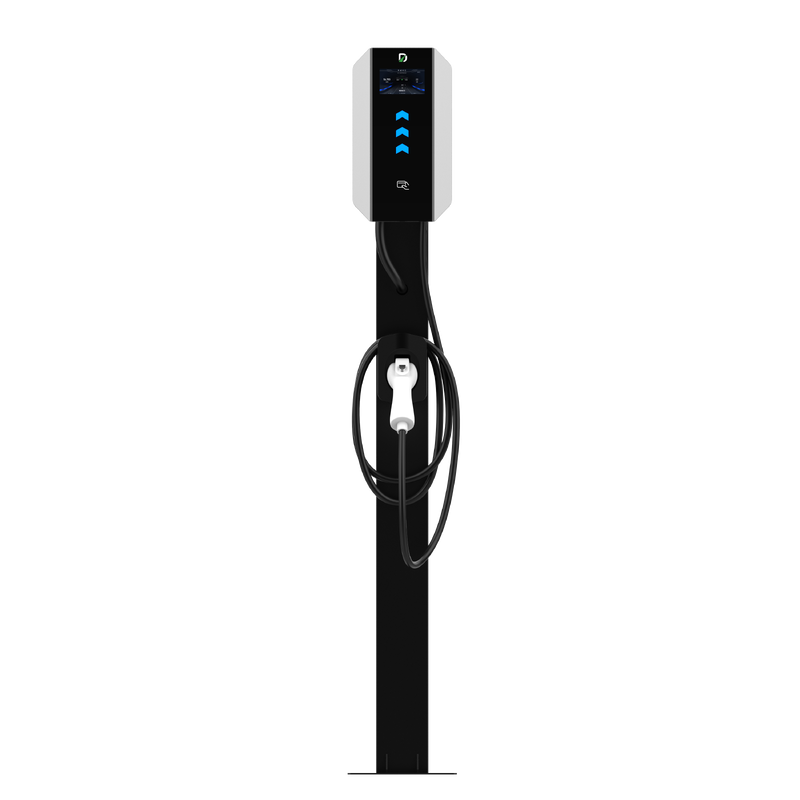

W Series AC EV charger 7kW/11kW/22kW 2

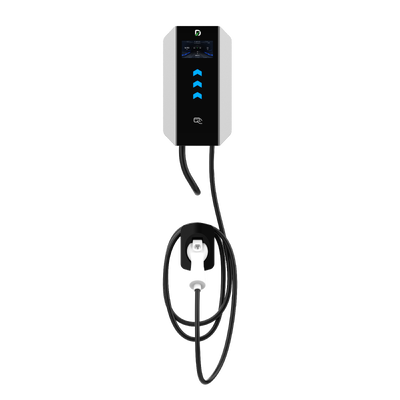

W Series AC EV charger 7kW/11kW/22kW 3
